Elevate generates a one hour traffic profile.  The profile consists of four 5 minutes bursts of traffic at 1 times, 1⅓ times, 1⅔ times and 2 times the peak Demand.  Between these four bursts of traffic, the traffic is maintained at one tenth of the specified peak Demand.

The traffic generated is divided into three parts, 40% incoming, 40% outgoing and 20% interfloor.

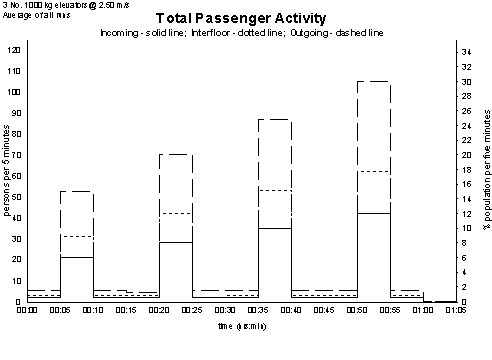

Figure 45   Example Passenger Demand graph for Barney one hour lunch template

For Dr Barney’s discussion of this template, please refer to Elevate on the web.
